Single Head Drilling Machine

Single Head Drilling Machine


PLC and touch screen are used to realize the automatic control of 5 sets of servo shaft linkage; two sets of independent spindles are drilled on both sides, and single-station or double-station operation can be set, which is simple and efficient.

The drilling spindle X / Y / Z is connected by linear guide rail and ball screw and controlled by servo motor.

Two pairs of upper and lower spindles of Z axis are drilled on both sides. The drilling speed is controlled by servo, which can easily control the drilling speed and depth by adjusting parameters.

It can be controlled by single table or double table; In the process of double table processing, the glass of one station is being processed, the glass of the second station can be loaded and unloaded at the same time, the glass of the second station can be processed automatically after the processing of the first station, and the glass of the first station can be loaded and unloaded. In this alternating cycle, the machine can work continuously.


  • Easy to use and flexible operation.

  • Covering area is small, saving space.

  • Low input cost, high yield.

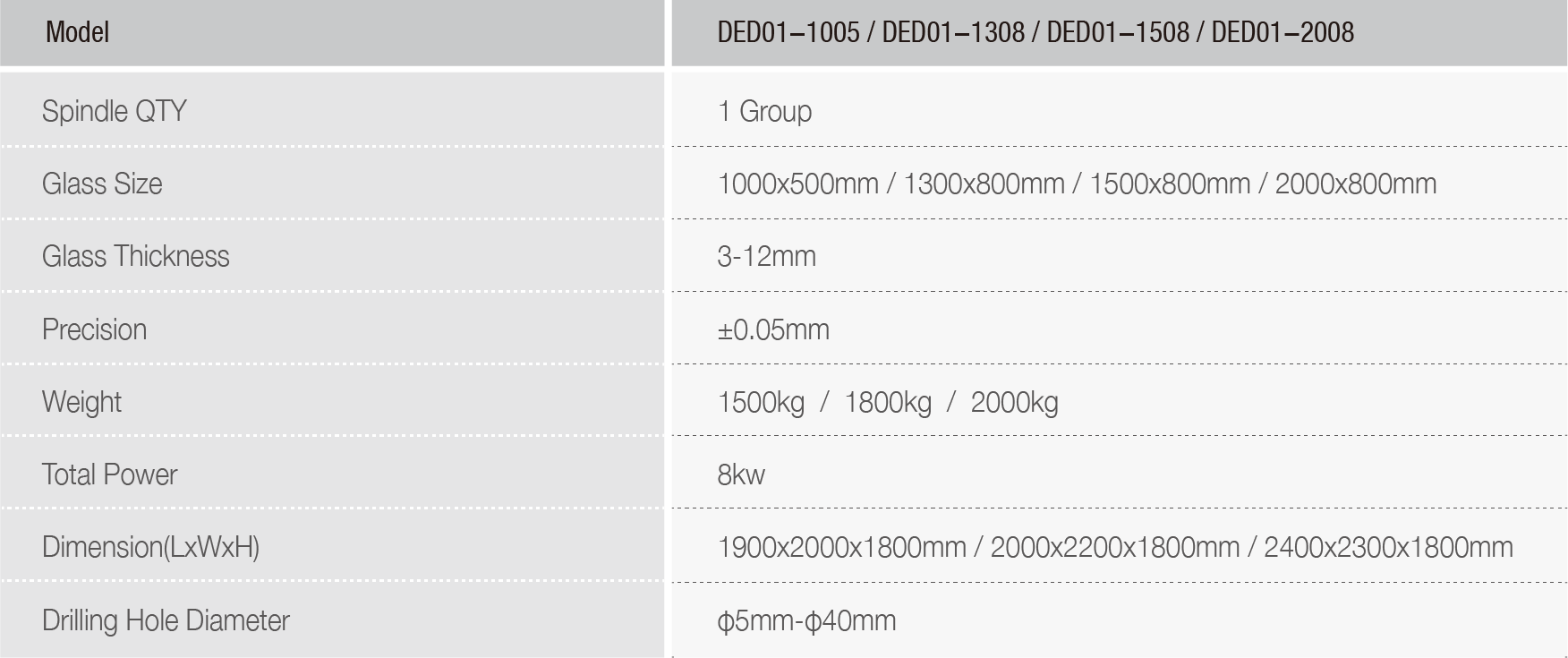

technical data
